Spring ’26: GraphQL Mutations in LWC (Using exampleLwc as a Practical Pattern)

GraphQL mutations support to Lightning Web Components via executeMutation from lightning/graphql. If you have ever built LWC using GraphQL to reads records but update/delete were lightning/uiRecordApi or Apex. with Spring ’26, you can now query and mutate UI API data through on GraphQL surface.

What changed in Spring’26:

Queries: still best done reactively with graphql wire adapter.
Mutations: now supported imperatively with executeMutation for create/update/delete

lightning/uiRecordApi is still great for straightforward CRUD, but if your component is already GraphQL-first, then executeMutation let you keep reads and writes in one GraphQL flow, return exactly the fields you need in the mutation payload, and refresh/recompute the UI from a single source of truth after each change.

the exampleLWC pattern (high-level)

Load 100 Accounts with a GraphQL query @wire(graphql,{query,variables})
Support inline edits: on save, decide create vs update based on whether the row is new – call Update, variables: { input:…})
Support delete: call executeMutation ({query: DELETE, variables: {input:{Id}}})
After any mutation: Refresh the GraphQL wire result – recompute derived UI state (filter + summary)

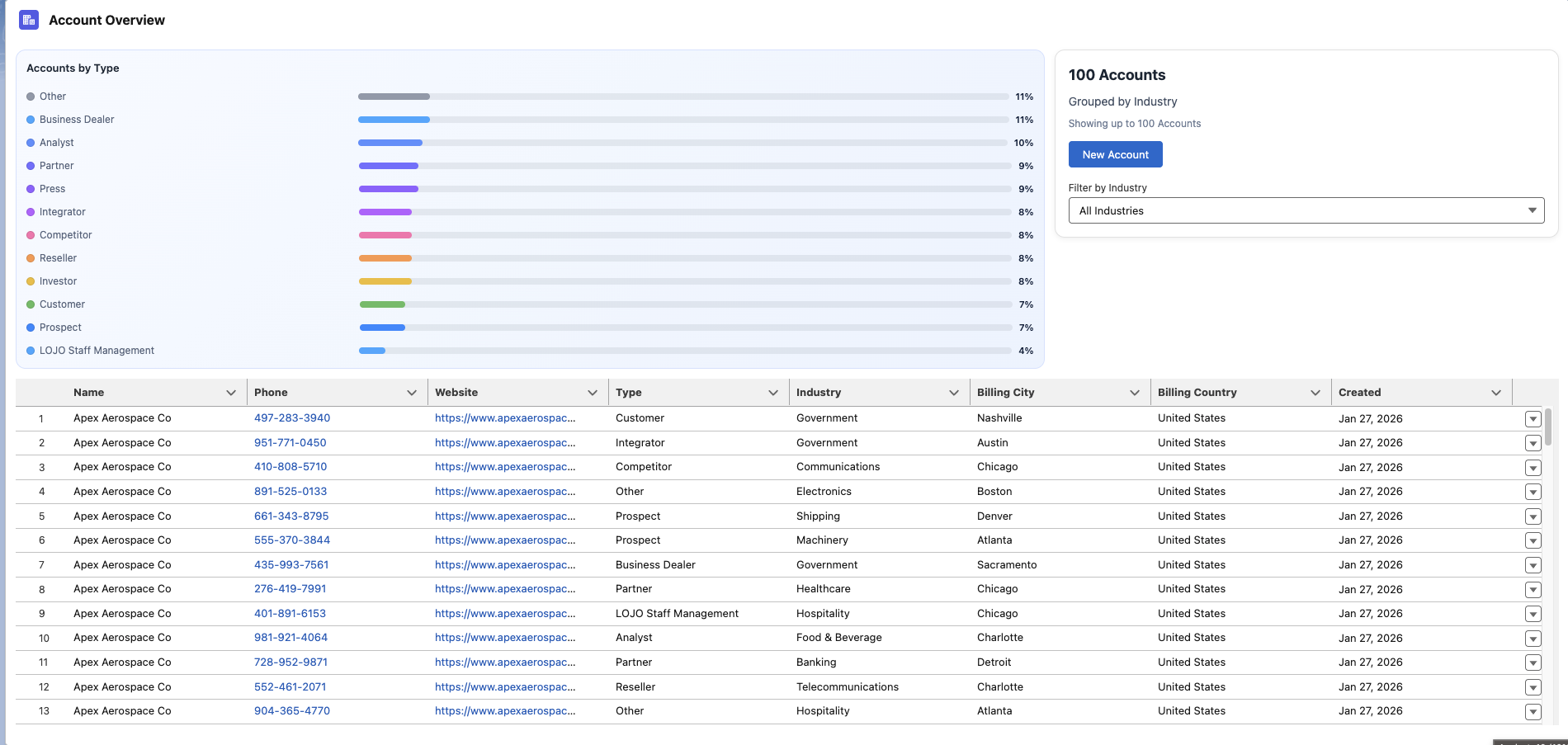

The chart/UI summary is just derived from the same queried data. The key point is: once your data comes from GraphQL and your writes also go through GraphQL, it’s easy to keep “counts by Type/Industry” accurate because you refresh from a single source of truth.

<template>
    <lightning-card title="Account Overview" icon-name="standard:account">
        <div class="slds-p-around_small">
            <template if:true={errorMessage}>
                <div class="slds-text-color_error slds-m-bottom_small">
                    {errorMessage}
                </div>
            </template>
            <div class="slds-grid slds-wrap slds-m-bottom_small">
                <div class="slds-col slds-size_1-of-1 slds-medium-size_2-of-3">
                    <div class="chart-panel">
                        <div class="chart-title">Accounts by Type</div>
                        <div class="type-chart">
                            <template for:each={typeShare} for:item="item">
                                <div key={item.label} class="type-row" title={item.tooltip}>
                                    <div class="type-row-label">
                                        <span class="industry-swatch" style={item.dotStyle}></span>
                                        {item.label}
                                    </div>
                                    <div class="type-row-bar">
                                        <span class="type-row-fill" style={item.barStyle}></span>
                                    </div>
                                    <div class="type-row-value">{item.percent}</div>
                                </div>
                            </template>
                        </div>
                    </div>
                </div>
                <div class="slds-col slds-size_1-of-1 slds-medium-size_1-of-3 slds-p-left_small">
                    <div class="summary-card">
                        <p class="summary-label">{filteredCountLabel}</p>
                        <p class="summary-sub">Grouped by Industry</p>
                        <p class="summary-meta">Showing up to 100 Accounts</p>
                        <div class="slds-m-top_small">
                            <lightning-button label="New Account" variant="brand" onclick={handleAddRow}></lightning-button>
                        </div>
                        <div class="slds-m-top_small">
                            <lightning-combobox
                                label="Filter by Industry"
                                value={selectedIndustry}
                                options={industryOptions}
                                onchange={handleIndustryChange}>
                            </lightning-combobox>
                        </div>
                    </div>
                </div>
            </div>
            <template if:true={isLoading}>
                <div class="slds-is-relative slds-m-vertical_medium">
                    <lightning-spinner size="small"></lightning-spinner>
                </div>
            </template>
            <div class="account-table slds-scrollable_y">
                <lightning-datatable
                    key-field="id"
                    data={filteredAccounts}
                    columns={columns}
                    draft-values={draftValues}
                    onsave={handleSave}
                    onrowaction={handleRowAction}
                    hide-checkbox-column
                    show-row-number-column>
                </lightning-datatable>
            </div>
        </div>
    </lightning-card>
</template>

import { LightningElement, wire } from 'lwc';
import { executeMutation, gql, graphql } from 'lightning/graphql';
const LIMIT_SIZE = 100;
const INDUSTRY_ALL = 'ALL';
const INDUSTRY_COLORS = [
    '#1b96ff',
    '#3bb3ff',
    '#5d9cfe',
    '#7b7cff',
    '#9b6dff',
    '#c06bff',
    '#ff7ab6',
    '#ff9f5a',
    '#f3c246',
    '#6cc56f'
];
const OTHER_COLOR = '#9aa4b2';
const COLUMNS = [
    { label: 'Name', fieldName: 'name', type: 'text', wrapText: true, editable: true },
    { label: 'Phone', fieldName: 'phone', type: 'phone', editable: true },
    { label: 'Website', fieldName: 'website', type: 'url', editable: true },
    { label: 'Type', fieldName: 'type', type: 'text', editable: true },
    { label: 'Industry', fieldName: 'industry', type: 'text', editable: true },
    { label: 'Billing City', fieldName: 'billingCity', type: 'text', editable: true },
    { label: 'Billing Country', fieldName: 'billingCountry', type: 'text', editable: true },
    { label: 'Created', fieldName: 'createdDate', type: 'date' }
];
const ROW_ACTIONS = [{ label: 'Delete', name: 'delete' }];
const ACTION_COLUMN = {
    type: 'action',
    typeAttributes: { rowActions: ROW_ACTIONS, menuAlignment: 'right' }
};
const ACCOUNT_QUERY = gql`
    query AccountList($limit: Int) {
        uiapi {
            query {
                Account(first: $limit, orderBy: { Name: { order: ASC } }) {
                    edges {
                        node {
                            Id
                            Name {
                                value
                            }
                            Phone {
                                value
                            }
                            Website {
                                value
                            }
                            Type {
                                value
                            }
                            Industry {
                                value
                            }
                            BillingCity {
                                value
                            }
                            BillingCountry {
                                value
                            }
                            CreatedDate {
                                value
                            }
                        }
                    }
                }
            }
        }
    }
`;
const CREATE_ACCOUNT_MUTATION = gql`
    mutation CreateAccount($input: AccountCreateInput!) {
        uiapi {
            AccountCreate(input: $input) {
                Record {
                    Id
                    Name {
                        value
                    }
                    Phone {
                        value
                    }
                    Website {
                        value
                    }
                    Type {
                        value
                    }
                    Industry {
                        value
                    }
                    BillingCity {
                        value
                    }
                    BillingCountry {
                        value
                    }
                    CreatedDate {
                        value
                    }
                }
            }
        }
    }
`;
const UPDATE_ACCOUNT_MUTATION = gql`
    mutation UpdateAccount($input: AccountUpdateInput!) {
        uiapi {
            AccountUpdate(input: $input) {
                Record {
                    Id
                    Name {
                        value
                    }
                    Phone {
                        value
                    }
                    Website {
                        value
                    }
                    Type {
                        value
                    }
                    Industry {
                        value
                    }
                    BillingCity {
                        value
                    }
                    BillingCountry {
                        value
                    }
                    CreatedDate {
                        value
                    }
                }
            }
        }
    }
`;
const DELETE_ACCOUNT_MUTATION = gql`
    mutation DeleteAccount($input: AccountDeleteInput!) {
        uiapi {
            AccountDelete(input: $input) {
                Id
            }
        }
    }
`;
export default class ExampleLwc extends LightningElement {
    accounts = [];
    errorMessage;
    columns = [...COLUMNS, ACTION_COLUMN];
    draftValues = [];
    typeShare = [];
    industryOptions = [];
    selectedIndustry = INDUSTRY_ALL;
    isDataLoading = true;
    wiredResult;
    get variables() {
        return { limit: LIMIT_SIZE };
    }
    @wire(graphql, { query: ACCOUNT_QUERY, variables: '$variables' })
    wiredAccounts(result) {
        this.wiredResult = result;
        this.isDataLoading = false;
        if (result.data) {
            const edges = result.data.uiapi?.query?.Account?.edges ?? [];
            this.accounts = edges
                .map((edge) => edge.node)
                .filter((node) => !!node?.Id)
                .map((node) => ({
                    id: node.Id,
                    name: node.Name?.value || '',
                    phone: node.Phone?.value,
                    website: node.Website?.value,
                    type: node.Type?.value,
                    industry: node.Industry?.value,
                    billingCity: node.BillingCity?.value,
                    billingCountry: node.BillingCountry?.value,
                    createdDate: node.CreatedDate?.value
                }));
            this.errorMessage = undefined;
            this.updateVisuals();
            return;
        }
        if (result.errors && result.errors.length > 0) {
            this.accounts = [];
            this.errorMessage = this.reduceError(result.errors);
            this.updateVisuals();
        }
    }
    get isLoading() {
        return this.isDataLoading;
    }
    get filteredCountLabel() {
        if (this.selectedIndustry === INDUSTRY_ALL) {
            return `${this.accounts.length} Accounts`;
        }
        return `${this.filteredAccounts.length} of ${this.accounts.length} Accounts`;
    }
    get filteredAccounts() {
        if (this.selectedIndustry === INDUSTRY_ALL) {
            return this.accounts;
        }
        return this.accounts.filter((account) => {
            const label = account.industry && account.industry.trim().length > 0 ? account.industry : 'Unknown';
            return label === this.selectedIndustry;
        });
    }
    handleAddRow() {
        const id = `NEW_${Date.now()}`;
        this.accounts = [
            {
                id,
                name: '',
                phone: '',
                website: '',
                type: '',
                industry: '',
                billingCity: '',
                billingCountry: '',
                createdDate: ''
            },
            ...this.accounts
        ];
    }
    handleIndustryChange(event) {
        this.selectedIndustry = event.detail.value || INDUSTRY_ALL;
        this.updateVisuals();
    }
    async handleSave(event) {
        const drafts = event.detail.draftValues || [];
        if (drafts.length === 0) {
            return;
        }
        this.isDataLoading = true;
        this.errorMessage = undefined;
        try {
            const mutationResults = await Promise.all(
                drafts.map((draft) => {
                    const recordId = String(draft.id || '');
                    const fields = this.buildFields(draft);
                    if (recordId.startsWith('NEW_')) {
                        return executeMutation({
                            query: CREATE_ACCOUNT_MUTATION,
                            variables: { input: { Account: fields } }
                        });
                    }
                    if (recordId) {
                        return executeMutation({
                            query: UPDATE_ACCOUNT_MUTATION,
                            variables: { input: { Id: recordId, Account: fields } }
                        });
                    }
                    return Promise.resolve({ data: undefined, errors: [{ message: 'Missing record id.' }] });
                })
            );
            const errors = mutationResults.flatMap((result) => result.errors || []);
            if (errors.length > 0) {
                this.errorMessage = this.reduceError(errors);
                return;
            }
            this.draftValues = [];
            await this.refreshGraphql();
        } catch (error) {
            this.errorMessage = this.reduceError(error);
        } finally {
            this.isDataLoading = false;
        }
    }
    async handleRowAction(event) {
        if (event.detail.action.name !== 'delete') {
            return;
        }
        const recordId = event.detail.row.id;
        if (recordId && recordId.startsWith('NEW_')) {
            this.accounts = this.accounts.filter((row) => row.id !== recordId);
            return;
        }
        this.isDataLoading = true;
        this.errorMessage = undefined;
        try {
            const result = await executeMutation({
                query: DELETE_ACCOUNT_MUTATION,
                variables: { input: { Id: recordId } }
            });
            if (result.errors && result.errors.length > 0) {
                this.errorMessage = this.reduceError(result.errors);
                return;
            }
            await this.refreshGraphql();
        } catch (error) {
            this.errorMessage = this.reduceError(error);
        } finally {
            this.isDataLoading = false;
        }
    }
    async refreshGraphql() {
        if (this.wiredResult?.refresh) {
            await this.wiredResult.refresh();
        }
    }
    buildFields(draft) {
        const fields = {};
        if (draft.name !== undefined) fields.Name = draft.name;
        if (draft.phone !== undefined) fields.Phone = draft.phone;
        if (draft.website !== undefined) fields.Website = draft.website;
        if (draft.type !== undefined) fields.Type = draft.type;
        if (draft.industry !== undefined) fields.Industry = draft.industry;
        if (draft.billingCity !== undefined) fields.BillingCity = draft.billingCity;
        if (draft.billingCountry !== undefined) fields.BillingCountry = draft.billingCountry;
        return fields;
    }
    updateVisuals() {
        const industry = this.buildDistribution(this.accounts, 'industry', undefined, false);
        this.industryOptions = this.buildIndustryOptions(industry.labels);
        if (!this.industryOptions.some((option) => option.value === this.selectedIndustry)) {
            this.selectedIndustry = INDUSTRY_ALL;
        }
        const filtered = this.filteredAccounts;
        const typeDistribution = this.buildDistribution(filtered, 'type', undefined, false);
        this.typeShare = this.buildShare(typeDistribution, filtered.length);
    }
    buildDistribution(rows, key, limit, groupOther = true) {
        const counts = new Map();
        rows.forEach((account) => {
            const raw = account[key];
            const label = raw && raw.trim().length > 0 ? raw : 'Unknown';
            counts.set(label, (counts.get(label) || 0) + 1);
        });
        const entries = Array.from(counts.entries()).sort((a, b) => b[1] - a[1]);
        const safeLimit = typeof limit === 'number' && limit > 0 ? limit : entries.length;
        const top = entries.slice(0, safeLimit);
        if (groupOther && entries.length > safeLimit) {
            const remainder = entries.slice(safeLimit);
            const othersTotal = remainder.reduce((sum, [, value]) => sum + value, 0);
            if (othersTotal > 0) {
                top.push(['Other', othersTotal]);
            }
        }
        return {
            labels: top.map(([label]) => label),
            values: top.map(([, value]) => value),
            colors: top.map(([label], index) =>
                (label === 'Other' ? OTHER_COLOR : INDUSTRY_COLORS[index % INDUSTRY_COLORS.length])
            )
        };
    }
    buildShare(distribution, total) {
        return distribution.labels.map((label, index) => {
            const count = distribution.values[index] ?? 0;
            const percentValue = total > 0 ? Math.round((count / total) * 100) : 0;
            const color = distribution.colors[index] ?? OTHER_COLOR;
            return {
                label,
                count,
                percent: `${percentValue}%`,
                barStyle: `width: ${percentValue}%; background-color: ${color};`,
                dotStyle: `background-color: ${color};`,
                tooltip: `${label}: ${count} (${percentValue}%)`
            };
        });
    }
    buildIndustryOptions(labels) {
        const options = labels.map((label) => ({ label, value: label }));
        return [{ label: 'All Industries', value: INDUSTRY_ALL }, ...options];
    }
    reduceError(error) {
        if (!error) {
            return 'Unknown error';
        }
        if (Array.isArray(error)) {
            return error.map((item) => item?.message).filter(Boolean).join(', ');
        }
        if (Array.isArray(error.body)) {
            return error.body.map((item) => item.message).filter(Boolean).join(', ');
        }
        if (error.body && error.body.message) {
            return error.body.message;
        }
        if (error.message) {
            return error.message;
        }
        try {
            return JSON.stringify(error);
        } catch {
            return 'Unknown error';
        }
    }
}

.chart-panel {
    background: linear-gradient(135deg, #f8fbff, #eef5ff);
    border-radius: 12px;
    border: 1px solid #d9e6ff;
    padding: 12px;
    min-height: 320px;
}
.chart-title {
    font-size: 13px;
    font-weight: 600;
    color: #1b2a3a;
    margin-bottom: 8px;
}
.type-chart {
    display: flex;
    flex-direction: column;
    gap: 10px;
    padding-top: 8px;
    min-height: 220px;
}
.account-table {
    height: 420px;
}
.type-row {
    display: grid;
    grid-template-columns: minmax(0, 1fr) minmax(120px, 2fr) auto;
    gap: 8px;
    align-items: center;
    font-size: 12px;
}
.type-row-label {
    display: inline-flex;
    align-items: center;
    gap: 6px;
    color: #5f6f86;
    max-width: 100%;
    overflow: hidden;
    text-overflow: ellipsis;
    white-space: nowrap;
}
.type-row-bar {
    height: 8px;
    background: rgba(27, 42, 58, 0.08);
    border-radius: 999px;
    overflow: hidden;
}
.type-row-fill {
    display: block;
    height: 100%;
    border-radius: 999px;
}
.type-row-value {
    font-size: 11px;
    font-weight: 600;
    color: #0a2342;
}
@media (max-width: 768px) {
    .chart {
        height: 240px;
    }
}
.summary-card {
    background: #ffffff;
    border: 1px solid #e5e5e5;
    border-radius: 12px;
    padding: 16px;
    height: 100%;
    box-shadow: 0 2px 6px rgba(0, 0, 0, 0.06);
}
.summary-label {
    font-size: 18px;
    font-weight: 700;
    color: #1b2a3a;
    margin-bottom: 8px;
}
.summary-sub {
    font-size: 14px;
    color: #4c5c70;
    margin-bottom: 8px;
}
.summary-meta {
    font-size: 12px;
    color: #7a8aa0;
}
.industry-name {
    overflow: hidden;
    text-overflow: ellipsis;
    white-space: nowrap;
    display: inline-flex;
    align-items: center;
    gap: 6px;
}
.industry-swatch {
    width: 10px;
    height: 10px;
    border-radius: 999px;
    border: 1px solid rgba(0, 0, 0, 0.1);
    flex: 0 0 auto;
}

<?xml version="1.0" encoding="UTF-8"?>
<LightningComponentBundle xmlns="http://soap.sforce.com/2006/04/metadata">
    <apiVersion>66.0</apiVersion>
    <isExposed>true</isExposed>
    <targets>
        <target>lightning__AppPage</target>
        <target>lightning__HomePage</target>
        <target>lightning__RecordPage</target>
    </targets>
</LightningComponentBundle>

Le Nguyen's Blog

8x Salesforce Certificates, Dev II, Application Architect

Spring ’26: GraphQL Mutations in LWC (Using exampleLwc as a Practical Pattern)

Leave a comment Cancel reply

Share this:

Related

Leave a comment Cancel reply
